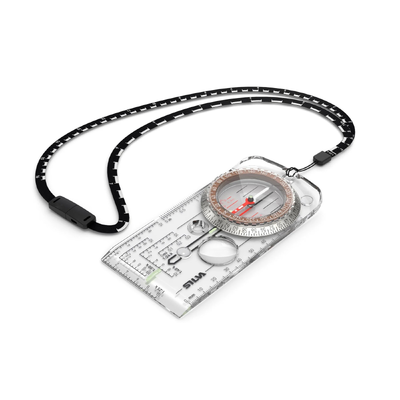

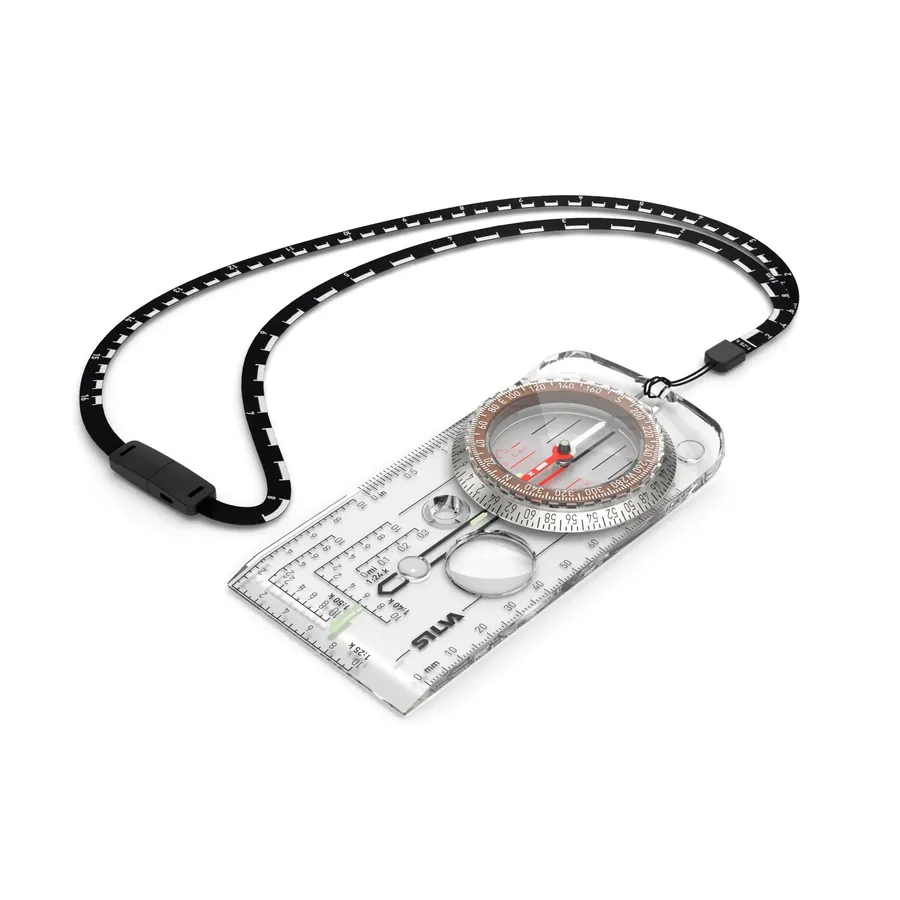

Silva 3E baseplate compass

Small sighting compass, ideal as a reserve compass for serious navigators.

The Compass 3E has a durable design to withstand challenging weather conditions. The compass features a liquid-filled compass housing with a sapphire jewel bearing and a high-quality steel needle for precise navigation. It has a magnifying lens and luminous markings that enable night navigation. With graduations in mils and degrees (6400/360), Romer scales for positioning and a distance lanyard the Compass 3E is a reliable navigation tool for your adventures.

FEATURES

Silva 1-2-3 System baseplate compass
Liquid-filled capsule
High-quality steel needle with sapphire jewel bearing and hardened steel pivot
Magnifying lens for detailed map reading
Declination adjustment: declination scale in capsule
Up to 4 hours of illumination from luminous markings (active time after activation
Graduated in mils and degrees (6400/360)
Silicon friction feet
Main material: Acrylic/Aluminum
Red/black N/S lines in capsule
Warranty 5 years
Weight 38g

Specification;

Accuracy 1°/17,8 mils
Country of origin CN
Dimensions (cm) 12.7x6x1.4
Included accessories: Distance lanyard (1:24 k, 1:25 k, 1:50 k, 1:62.5 k)
IP classification Waterproof
Measuring scales Inch, mm,1:40000, 1:25000, 1:50000, 1:24000
Type of compass: Base plate compass
User level Expert

TECH SPECS
Weight: 38g

Dimensions; 12.7 x 6 x 1.4cm
Material: Acrylic/Aluminium

Brand : Silva

Model # : SV38512

Barcode : 7318860208195

Compass Style : Plate

Graduation : Degrees

Weight : 23g
